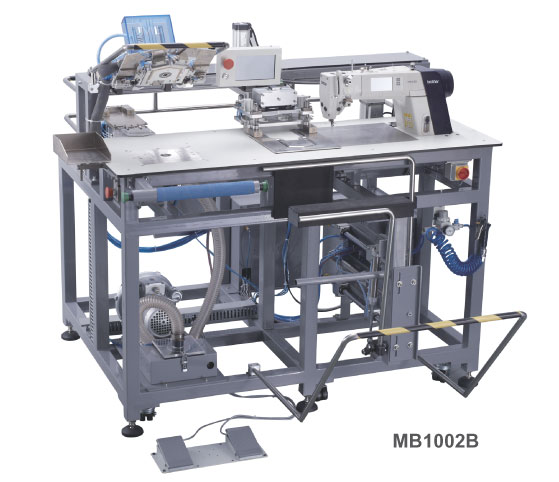

MB1002B Single Needle

IMB Automatic Shirt Pocket Setter

• Apply to Knit/ Woven light Medium Weight Fabric
• Production: 150-180 pcs/hour on average

Features :

• Creasing-Free One Time Folding Mechanism
• Innovative New Operation System , Easy Program Mechanism,
• Easy Jig Change Mechanism
• Auto-Folding,Auto-Feeding,Auto-Sewing,Auto-Stacking Mechanism
• Apply to varieties of different Pocket Shapes
• Work Skill Unneeded

• Jig is required to raplace with new one when it comes to pocket size change.
• There are 3 different level on pocket size.
  sewing area seen below( Width * Length):
  Level 'S' , small size: 7.3*7.9---9.5*11 (cm)
  Level 'M' , medium size: 9.5*11---14*14(cm)
  Level 'L' , large size: 14*14---18*18(cm)

Suppose pocket size level change from 'S' to 'L', then there is one part called folding group mounting base
which requires to be replaced with relative base .
Machine maximum sewing area is strictly limited by pocket size 'Length ' .

Machine Features :

• Machine with New Qrogram Making Quick OS.
• Machine with Quick Jig Change Function (Folding Group excluded).
• Machine with Color Match Function.
• Machine with Label Attach Function.
• Machine can be used on both woven and knit, sports wear othe light fabric etc.
