Feature:

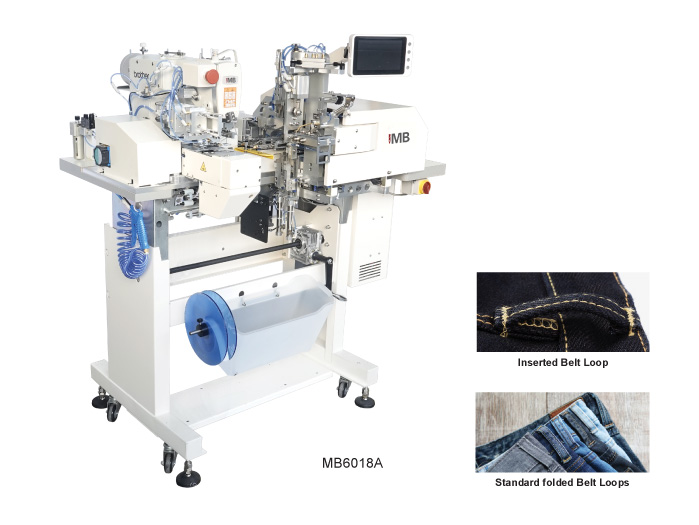

- High speed beltloop setter for denim trousers and/or chino’s
- Beltloops prepared from roll, or numbered single loops
- Feeding, cutting ,folding, inserting and stitching the loop accordingly needed length
- Loop joint detection : The unit will cut and blow out the joints
- The loops can be cut straight or in angle, “V”-cut, to prevent/reduce manual cutting after stitching/washing
- Only 2mm loop extention inside the loop, to prevent cleaning after stitching
- Loop fullness programmable function
- User friendly operating system, don’t require skilled operators
- Compensating pressure feet for thickness calibration
- Optimized programming system for making the bar-tack design on the unit over color touchscreen
- USB transferable designs from one machine to another
- Height adjustable stand by handle, in order to get the best ergonomic position for the operator
- Optimized edge adjustment can be done by operator
- Big capacity rotary hooks
- Needle cooler
- Innovance drive and motor for loop feeding
- Motor driven loop catcher
- High grade Airtac TV-series for all standard pneumatic parts
- Thread monitor for thread and/or eventual thread break detection
|
